2.0TDI CUNA Turbo Upgrade CUPA VW GOLF VII GTD, Seat Leon 5F, Audi A3 8V, Skoda Octavia III GTD1449VZ

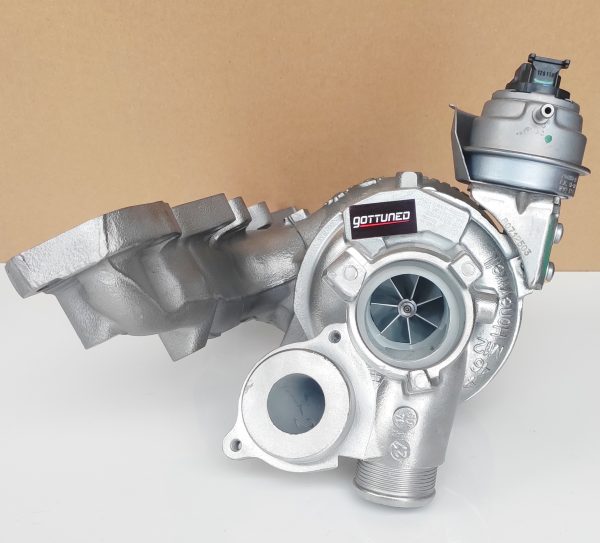

Description Genuine Garrett Stage 1 Premium Hybrid Turbocharger built using 7 7 blade Billet Wheel, based on stock Garrett GTD1449VZ turbocharger from VAG`s engine 2.0 TDI CUNA, CUPA is the ultimate choice for Seat Leon 5F, Skoda Octavia III, Audi A3 8V and VW GOLF VII for someone looking for a fast daily driver. The full list of changes applied is as follows: – Journal bearings – so-called ‘360’, – Modification of compressor housing, – Modification of seal plate, – Enlarged compressor Billet Wheel 7 7, – Genuine Garrett clipped and lightened turbine wheel to reduce the backpressure, – Genuine Garrett compressor housing, – Genuine Garrett exhaust manifold, – Genuine Garrett bearing housing, – Genuine Honeywell electronic vacuum actuator, – Dynamically Balanced. What’s so special about this one? 1. Quick spool by applying lighter/enlarged 7 7 Billet Wheel. 2. Only oil cooling (there is not water cooling). 3. Efficient generation of Variable Nozzle Turbine. 4. 100% Plug&Play fitment. 5. Precise VNT adjustment. The turbo is meant to work with ~260HP, boost 29PSI/2,1Bar. In order to reach that level of power, you need to adjust your exhaust and cooling systems as well. Professional ECU remapping is required! The main advantages of Billet Compressor Wheels: Billet Compressor wheels (or MFS Wheels Manufactured from Solid) are made from a solid piece of alloy (billet). A CNC miller performs the wheel from a CAD program. Billet compressor wheels are far stronger than a cast wheel due to being machined from a solid piece of material. This extra strength allows the wheel blades and hub to be thinner, increasing blade area resulting in increased air flow from a wheel with matching overall dimensions. As the Billet compressor wheel can have thinner blades and hub, this means that generally, the MFS compressor wheel will also be lighter than its cast counterpart. The improvement will add greater air flow. Faster boost response at lower engine speeds. Increased efficiency at higher boost pressures. Cars A3 2.0 TDI (8V) 184HP VW Golf VII 2.0 TDI 184HP Seat Leon 5F 2.0TDI 184HP Skoda Octavia III 2.0TDI 184HP Engines CUNA, CUPA Factory numbers 821866-5004S 821866-5003S 821866-5002S 821866-5001S 821866-0004 821866-0003 821866-0002 821866-0001 OEM numbers 04L253010H 04L253010HX 04L253010HV Average time we need to build hybrid turbochargers is 10 working days. Learn more about hybrid turbo we can build
